0dB GRP Base Antenna. Procom Marine Grade.
Part Number: ANT-GRP-0dB
Product Information
Technical & PDF
Accessories & Spares
Knowledge Base
Key Features
- Unity Gain (0dB)
- Marine Grade
- Omni Directional
This superb quality Procom base station antenna is designed for years of service in the most exposed environments.
Marine grade materials for salt water atmospheres and easily fitted to vertical and horizontal poles and struts.
Wildtalk has one of these working at over 3000ft in a very exposed location.

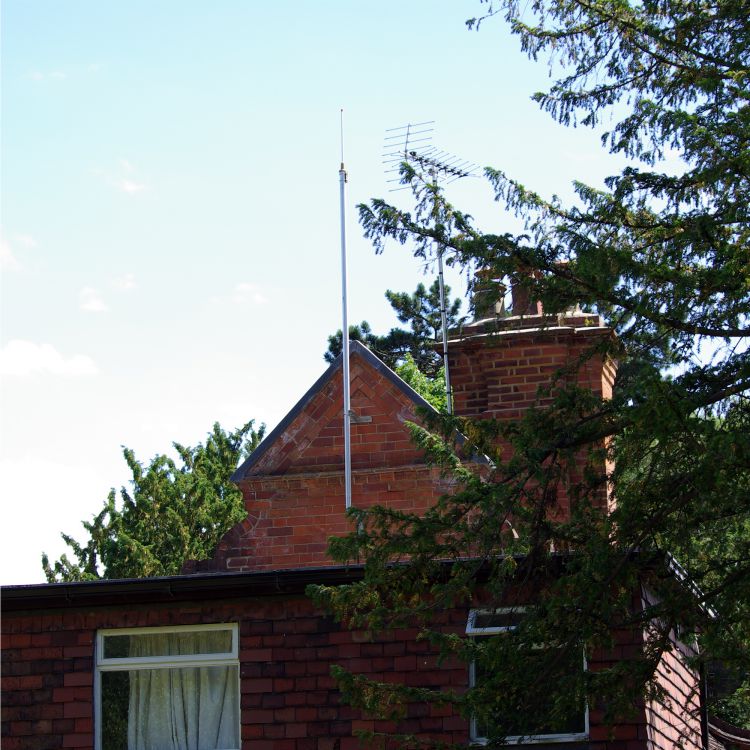

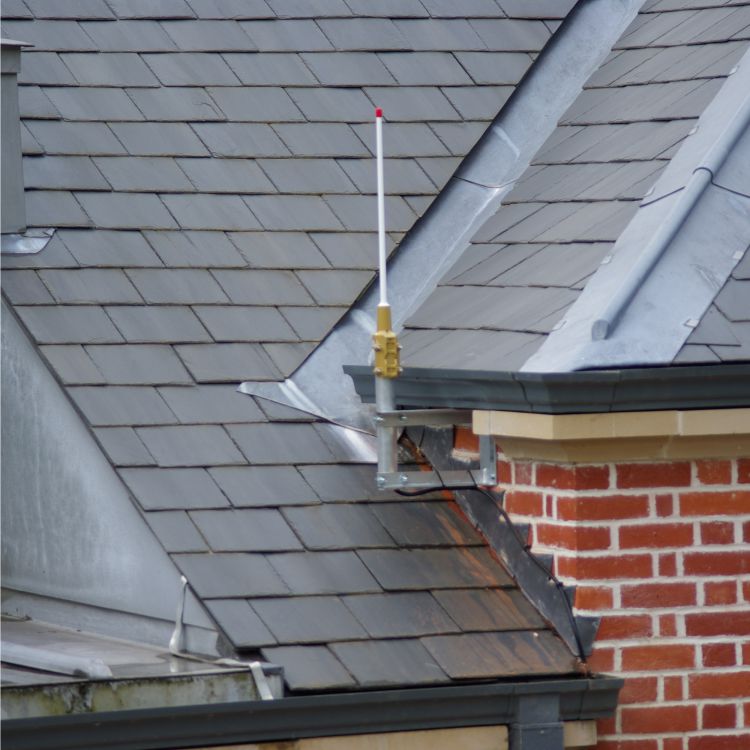

The ones illustrated are used for full building and estate coverage of an IP linked repeater system.
Applications / Other Information
- Vertically polarised, omni directional base station and marine.
- Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated
- Mounting bracket made of non-corrosive aluminium. The accompanying U-bolts and fittings are made of stainless steel.

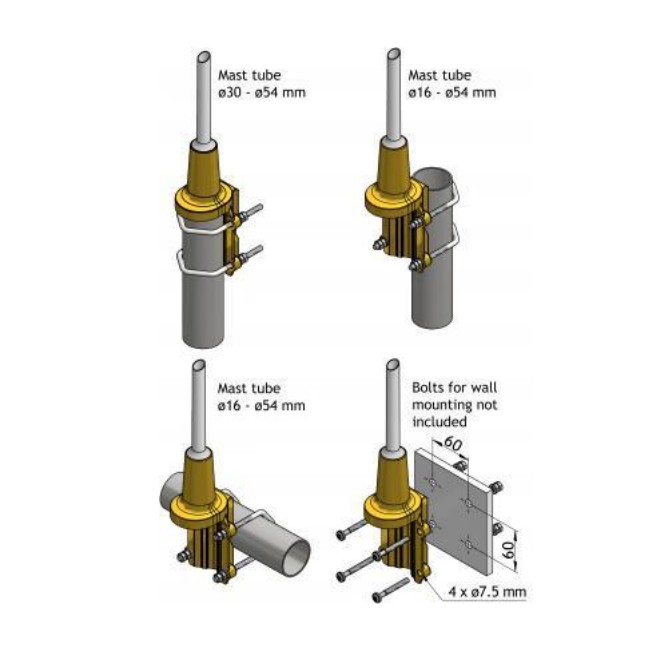

- To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
- The cable can be lead either on the outside or along the inside of the mast tube.
- Large bandwidth with respect to both SWR and gain. The phasing of the radiating elements is adjusted to yield maximum gain in the horizontal plane, with the level of the side lobes reduced to a minimum.
- The carefully designed, broad-banded antenna element is sealed in a high-quality conical glassfiber tube with low wind-load, which will ensure undisturbed performance by corrosive environments.
- To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
- Vibration-proof, lightweight, slim-line, corrosion resistant.
