HM Motorcycle Antenna for Kenwood

Part Number: ANT-PAN-HM-SMAF

Typical Applications

  • Motorsports
£48.00 Exc. VATShow VAT£57.60 Inc. VAT
enquire about this product
Motorcycle UHF Antenna Panorama HM
Motorcycle UHF Antenna
Motorcycle UHF Aerial
Motorcycle Groundplane Free Antenna
Motorcycle UHF Antenna Panorama HM
Click Photo to Enlarge
HM Motorcycle Antenna for Kenwood
HM Motorcycle Antenna for Kenwood
HM Motorcycle Antenna for Kenwood
HM Motorcycle Antenna for Kenwood
Product Information
Technical & PDF
Accessories & Spares
Knowledge Base

Key Features

  • Easy to fit UHF Motorcycle Aerial
  • To fit Kenwood with SMA socket.
  • Ground-plane independent.

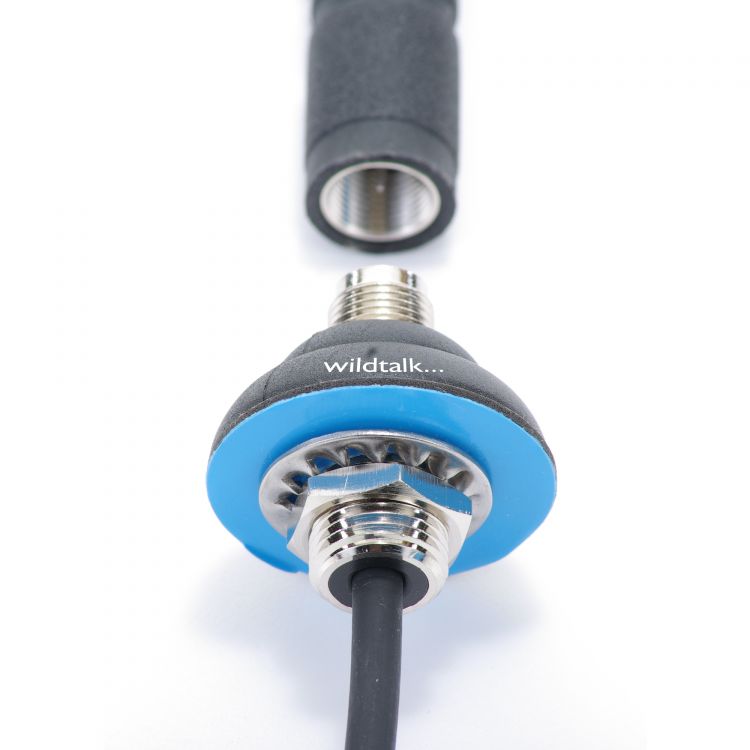

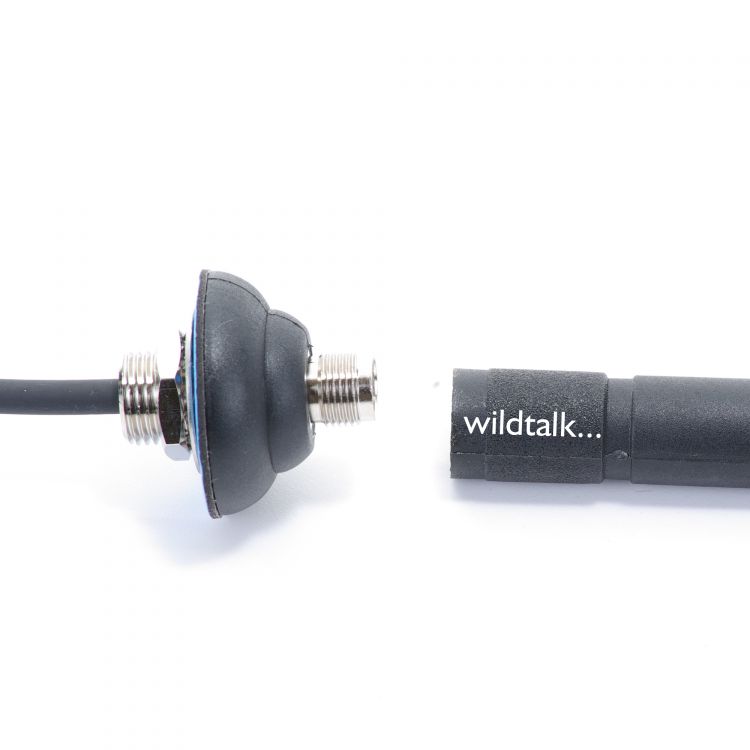

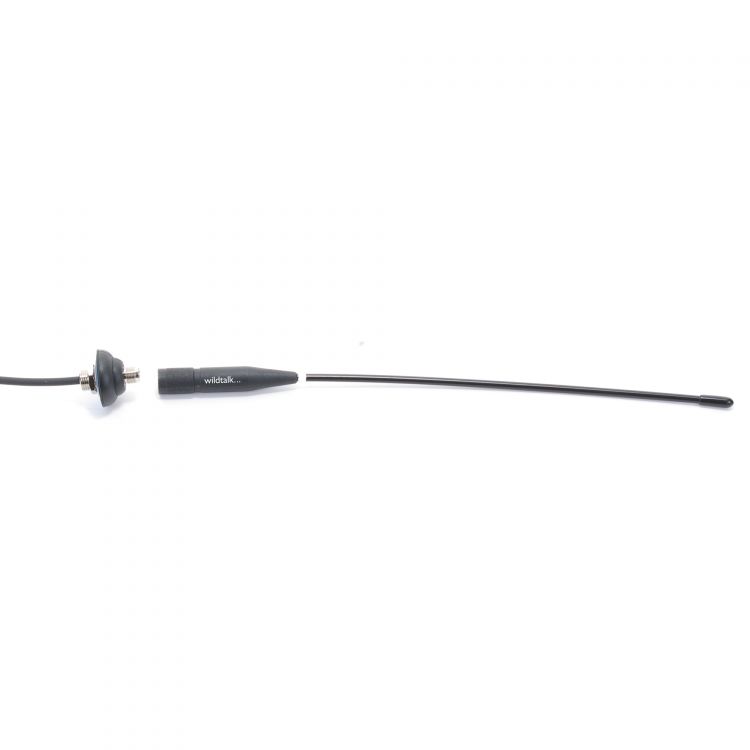

  • Fast removal of whip without tools.
  • Soft and flexible whip.
  • Easily fitted to any panel, plastic, metal and GRP

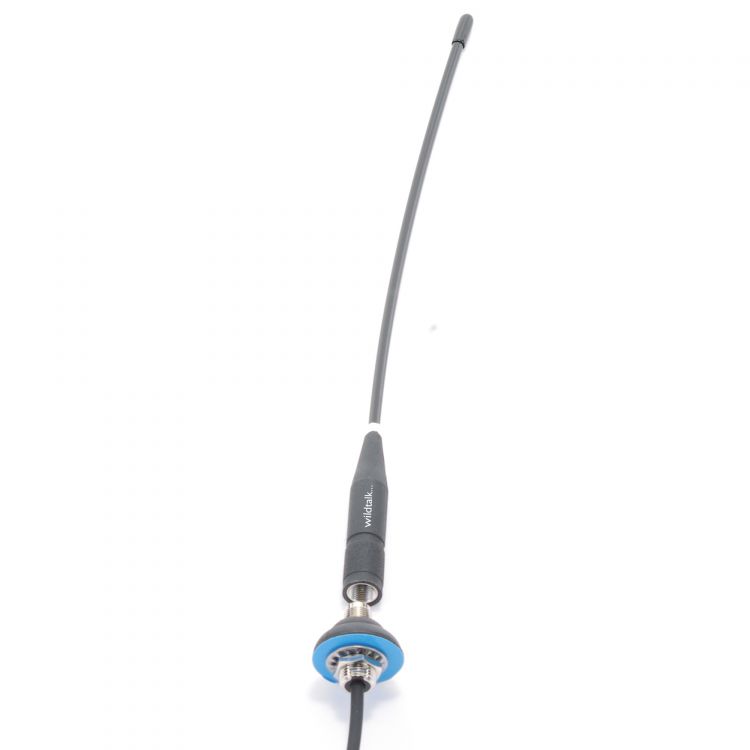

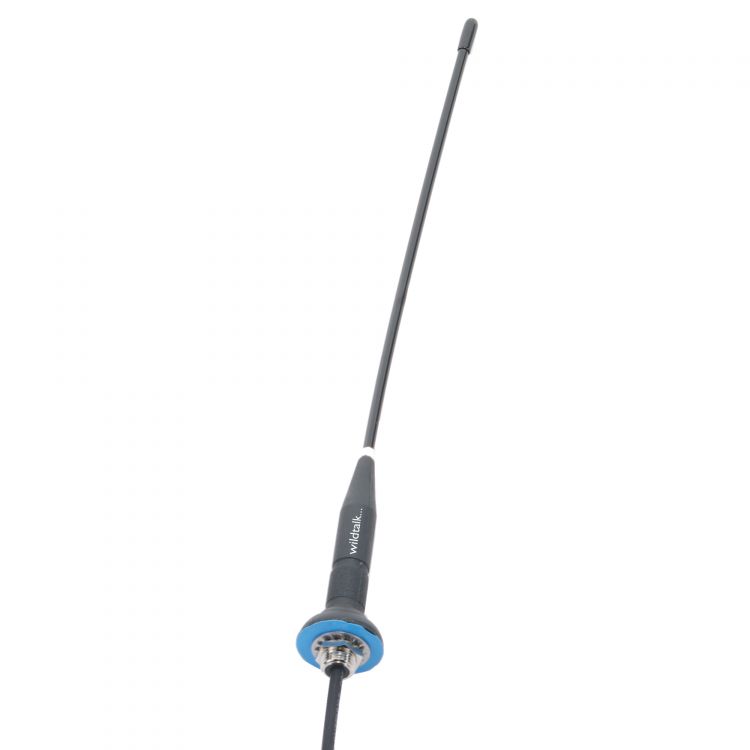

The Panorama Antenna HM is a ground-plane independent Motorcyle antenna for UHF frequencies 438 to 472 Mhz. (Also available as low as 300mHz. Please email).

Supplied fitted with an SMA female socket which screws into UHF Kenwood radios TK3202, TK3302, TK3140, TK3180,TK3160, TK3160, TK3170, TK3360, TKD340 and all NX models.

Ground-plane independent means it is probably the easiest antenna to fit. Its not fussy about what it is attached to. Plastic or metal panels or brackets.

It doesn't not need tuning, trimming or SWR testing and will work our of the box for the frequencies on the range above.

It doesn't not need a ground-plane, it can be fitted to any horizontal surface, non conducting or metalwork making it ideal for Motorcycles or mounting on other non-metallic structures.

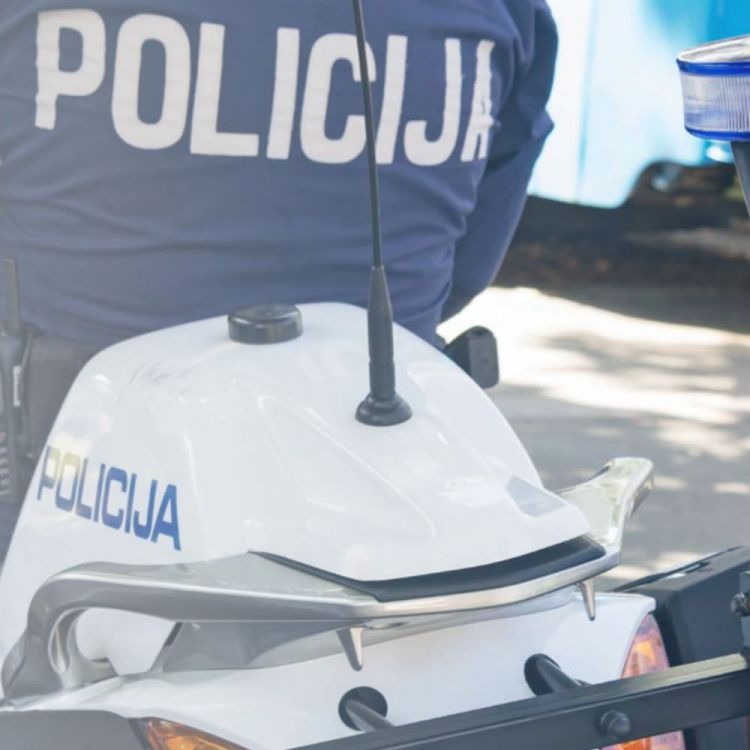

This makes it ideal for Motorcycle installation or for Machine to Machine data communications.

Supplied fitted with an FME female plug so the cable can be threaded through a 9mm hole. You will need two further parts to connect to most handheld radios. An FME to BNC adaptor then a suitable BNC adaptor to suit your radio. Click the Accessories & Spares tab for these.]

If you need a rapid-disconnect version please order these three parts.

The antenna

BNC adaptor

Kenwood adaptor

Applications / Other Information

  • Frequency range 438-472Mhz
  • Overall height 34cm
  • Mounting Hole 14mm
  • Max panel thickness 6mm

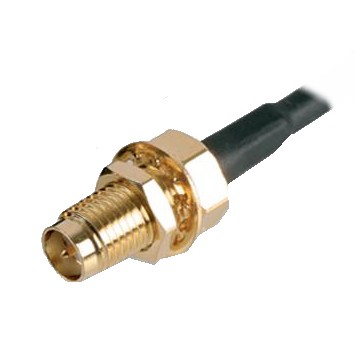

  • Supplied with a fitted SMA female connector (this will pass through a 9mm hole).
  • Cable Diameter 4.8mm
  • Cable Length up to 5m. (Can be supplied shorter. Please email)
