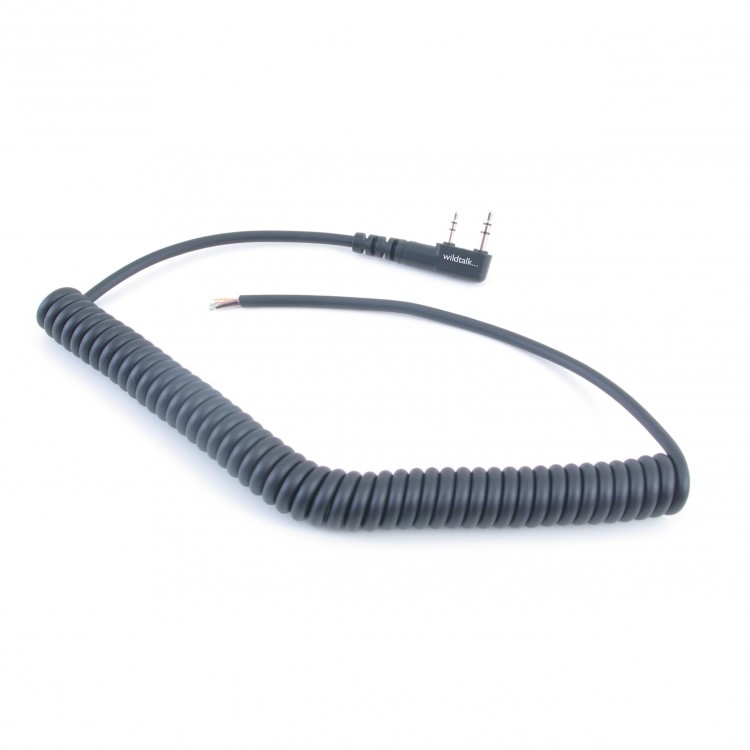

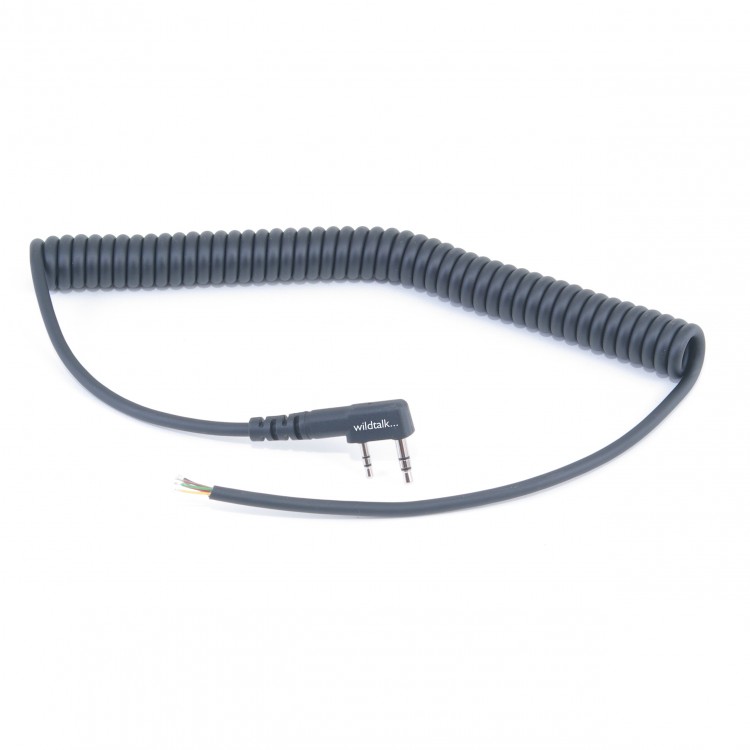

Kenwood Curly Cable

Part Number: CURLY-K
£8.50 Exc. VATShow VAT£10.20 Inc. VAT
enquire about this product
Kenwood Curly cable Pinouts
Kenwood curly cable
Kenwood plug pin outs

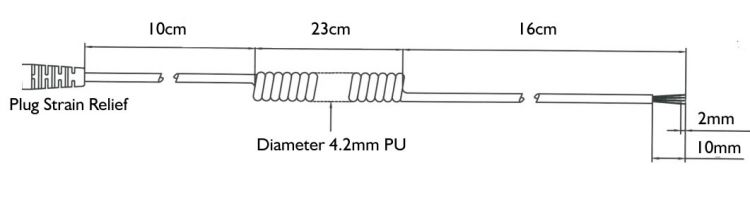

Drawing Curly K
Kenwood Curly cable Pinouts
Click Photo to Enlarge
Product Information
Technical & PDF
Accessories & Spares
Knowledge Base

Key Features

  • Moulded-on radio plug.
  • Flex connector

A good quality un-terminated curly cable with a moulded plug like the one in the image to fit Kenwood 2 pin radios. All six cores are connected so it can be used for audio, PTT, Power take off and programming.

Ideal as a replacement cable for headsets and speaker-mics or for connecting DIY audio devices
We also have a straight version of this cable which is up to 1.4m long.

Straight version of this cable.

Applications / Other Information



  • Overall Diameter 4mm

  • Plug to Curly 90mm

  • Curly Relaxed 210mm

  • Curly Stretched 1m

  • Curly to end 170mm

Please note these measurements are nominal please get in touch if you require more precise specifications.
