Marine Intercom User Port

Part Number: WIRE-MUP

Typical Applications

  • Marine Industries
  • Oil, Gas, Nuclear, Power
  • Construction & Rail
  • Security & Defence
  • Farming, Forestry, Shooting
Call for price
enquire about this product

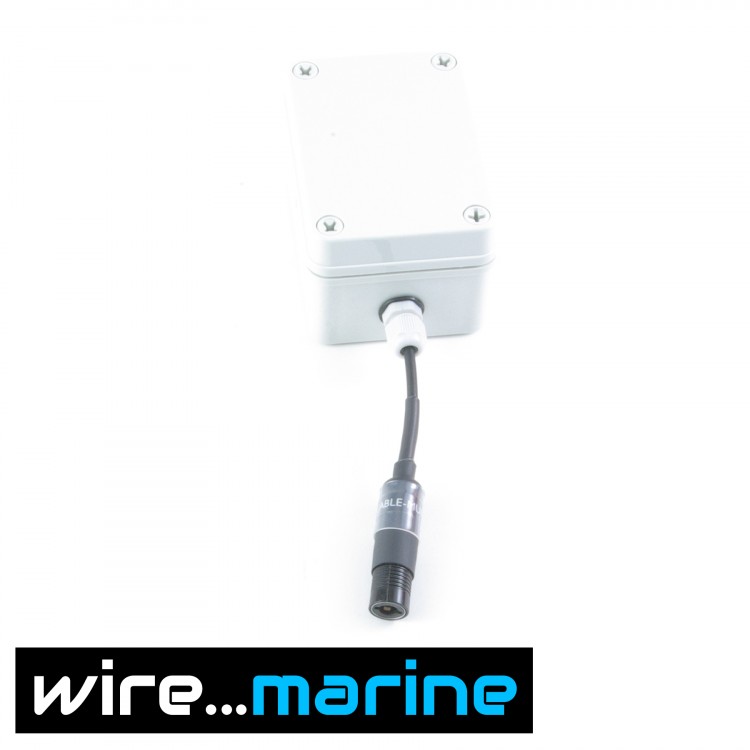

Marin intercom socket
Marin intercom socket
Click Photo to Enlarge
Marine Intercom User Port
Product Information
Technical & PDF
Accessories & Spares
Knowledge Base

Wire is a wired intercom that can be adapted to high and low noise systems in a wide range of applications. Industrial, Search and Rescue, Military etc. Wire is a two part technology, a speech processor (ASP) and and intercom unit (MPL). Either can be used separately but usually they work together to make the Wire Intercom system.

The Marine User Port (MUP) is where you plug in your Marine helmet kit intercom. Any number of these can be fitted to the MPL so crew can move from station to station. It has been designed to be very simple to fit and even easier to maintain. The headset socket is designed to be self parting (snatch plug). Corroded socket can be replaced in seconds with basic hand tools.

What is ‘Wire’

  • WIRE is a cable connected Intercom.
  • WIRE is supplied as either an ear defender headset or beltpack and headset.
  • WIRE uses ASP for clear speech up to 100dB and beyond.
  • The intercom is full-duplex. No button pressing, open-mic for all users (optional PTT version).
  • WIRE is hubless using Multiple Port Line (MPL) for simplicity and reliability.
  • There is no central controller or hub to fail.
  • All the technology is in the headsets or belt pack. Should a headset fail it can be swapped by the end user without technical skills or support.
  • Wire can be interfaced to two-way radios.
  • WIRE is not fussy about its cable, virtually any low cost cable can be used.
  • Wire is powered from anywhere along the cable. From battery, vehicle or mains.

ASP

  • Active speech processing dynamically adjusts the Mic and intercom performance to match ambient sound levels.
  • Mic gain is adjusted as background noise varies. More noise and the Mic becomes less sensitive.
  • Sounds above a preset level are compressed to prevent distortion and keep speech clear and intelligible.
  • The Mic is automatically muted when the user is not talking, this means only the users voice is heard over the intercom and ambient noise is silenced making the system quieter and pleasant to use.


MPL

  • Multi port line is just that, a single cable with as many headset ports (sockets) along its length that you require. The cable can be linear, star, loop or drop wired.
  • The MPL provides power and routes the intercom signal to each headset.
  • There is no Intercom controller or ‘Hub’. Wire is hubless with the only electronics being in each headset eliminating a single point of failure cause intercom failure.
  • Interference free. MPL is a low impedance, high level signal system resistant to interference even when using plain unshielded and untwisted cable.

WIRE-MUP

Applications / Other Information

Cost Effective

  • Fully Serviceable
  • All Parts available as spares
  • Tough and Robust
  • Designed for daily use in industry
